SCHEDA TECNICA / TECHNICAL SHEET

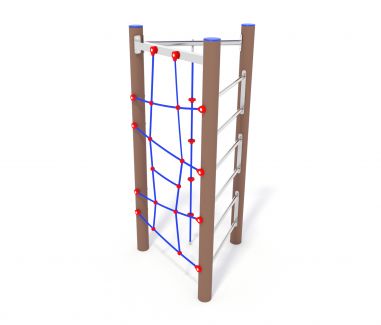

Name: PALESTRA TRIANGOLO RECYCLED
29/03/2024
Rev. 07 Code: C0400R   Pag. 1/1

cm 104x104xh180 cm 450x450 HIC cm 180   AGE 3-12

ARREDO URBANO GIOCHI PER PARCHI SCENOGRAFIE DAL 1950 ALL'AVANGUARDIA
Copyright (C) POZZA 1865 S.r.l. - P.IVA IT02311670224 - info@pozza.it
DESCRIZIONE COMPONENTI / PARTS DESCRIPTION
NR
1
 Cod.: 0053
 RECYCLED PLASTIC SUPPORTING STRUCTURE FOR GYM
 STRUTTURA PALESTRA RICILATA


 Recycled plastic supporting structure for gym
 Struttura portante palestra in plastica riciclata
NR
1
 Cod.: FR1-14
 CLIMBING ROPE
 FUNE DI RISALITA


 CLIMBING ROPE
 FUNE DI RISALITA realizzata con sbarra in acciaio inox diametro 32 mm ed fune h2200 Ř16 in acciaio rivestito, tutta la bulloneria e fissaggi in acciaio inox
NR
3
 Cod.: PAL-04
 Vertical and horizontal wall-bar
 Spalliera verticale e orizzontale


 Made with stainless steel rugs, supported by two side supports inwood
 Realizzata con pioli in acciaio inox, incassati su due sostegni laterali in legno
NR
1
 Cod.: PAL-08
 Vertical shroud
 Sartia verticale


 Made climbing net made in steel rope coated and fixed to the supporting structure with retractable bolts
 Realizzata rete di arrampicata in corda di acciaio rivestita e fissata alla struttura portante mediante bulloneria passante a scomparsa
NR
1
 Cod.: 0374
 Stainless Steel supporting beam
 Trave sartia INOX


 Supporting beam for ladders made of stainless steel
 Trave di supporto per sartia in acciaio INOX

METHOD FOR FIXING THE GAME POSTS ON THE GROUND
METODO DI FISSAGGIO A TERRA DEI MONTANTI DEL GIOCO

The use of suitable galvanized brackets avoid the post be in a direct contact with the ground.
Attrezzatura predisposta per fissaggio in terreno vegetale mediante l’utilizzo di appositi telai metallici.


INFORMATION RELATING TO INSPECTION /
INFORMAZIONI RELATIVE ALL’ISPEZIONE

Check / Ispezione:

  • periodical visual check / ispezione visiva periodica :
  • check the cleaning of the equipment / controllo della pulizia dell’attrezzatura;
  • check the area between the ground and the equipment / controllo degli interspazi tra terreno ed attrezzatura;
  • check the consistency of the ground / controllo della consistenza del terreno;
  • check the foundations / controllo delle fondamenta ;
  • check the corners / controllo degli spigoli;
  • check the possible lack of some items / controllo dell’eventuale mancanza di parti ;
  • check the excessive wear of the movable items (bushes and pivots) / controllo dell’usura eccessiva delle parti mobili (snodi e boccole);
  • check the integrity of the entire equipment / controllo dell’integritĂ  dell’intera attrezzatura.
  •

For the game area, subject to be use intensively or to acts of vandalism, it can be necessary to daily check the equipment. / Per le aree gioco soggette ad uso intensivo o vandalismo, può essere necessaria un’ispezione giornaliera.

  • Functional check / Ispezione funzionale:
  • it must be performed every 1-3 months / deve essere eseguita con frequenza da 1 a 3 mesi.
  • Periodical annual check / Ispezione annuale periodica:
It could be necessary to disassembly some parts to be checked / Potrebbe rendersi necessario lo smontaggio di alcune parti per la verifica
