SCHEDA TECNICA / TECHNICAL SHEET

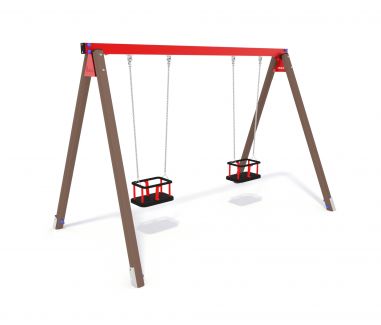

Name: ALTALENA PICCOLI RECYCLED
28/03/2024
Rev. 01 Code: B0302R   Pag. 1/1

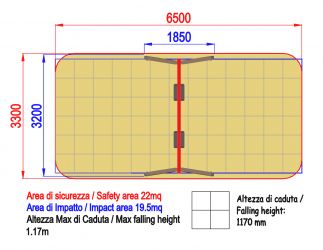

cm 330x155xh140 cm 650x430 HIC cm 117   AGE 0-12

ARREDO URBANO GIOCHI PER PARCHI SCENOGRAFIE DAL 1950 ALL'AVANGUARDIA
Copyright (C) POZZA 1865 S.r.l. - P.IVA IT02311670224 - info@pozza.it
DESCRIZIONE COMPONENTI / PARTS DESCRIPTION
NR
4
 Cod.: 60
 Joints
 Snodi


 Made of two stainelss steel parts with teflon moving part on the inside
 Realizzati in acciaio inox, blocco centrale oscillante con boccole in nylon autolubrificante ed antirumore.
NR
2
 Cod.: 110 / P/14/113
 Cage seat
 Gabbia


 Cage seat: seat made of anti-shock rubber reinforced with metal, it is made with a reinforced rubber cage for the safety of younger users.
 Seduta a gabbia: Seggiolino in gomma ad alto assorbimento d’urto rinforzato da una struttura in metallo, con gabbia in gomma per gli utenti piů piccoli.
NR
1
 Cod.: B0300R
 RECYCLED SWING STRUCTURE
 STRUTTURA ALTALENA RICICLATA


 AUPPORTING STRUCTURE FOR SWING WITH SUPPORTING GIDERS MADE OF RECYCLED PLASTIC AND THE BEAM MADE OF PAINTED STAINLESS STEEL
 STRUTTURA PORTANTE ALTALENA REALIZZATA CON MONTANTI IN PLASTICA RICICLATA E TRAVE IN ACCIAIO VERNICIATO
NR
2
 Cod.: CTSA0010
 Swing Bracket
 Staffa altalena


 Bracket: Bracket to attach the legs and main girder made by steel
 Staffa a tre vie per il fissaggio gambe e trave portante, in acciaio zincato e verniciato
NR
1
 Cod.: EPAL01-01C1
 Supporting Beam EPAL01-01C1
 Trave EPAL01-01C1


 Horizontal supporting beam: Made of painted zinc-plated iron.
 Trave portante orizzontale: Realizzata in acciaio zincato e verniciato di lunghezza 300 cm e spessore 1,6 mm.

METHOD FOR FIXING THE GAME POSTS ON THE GROUND
METODO DI FISSAGGIO A TERRA DEI MONTANTI DEL GIOCO

The use of suitable galvanized brackets avoid the post be in a direct contact with the ground.
Attrezzatura predisposta per fissaggio in terreno vegetale mediante l’utilizzo di appositi telai metallici.


INFORMATION RELATING TO INSPECTION /
INFORMAZIONI RELATIVE ALL’ISPEZIONE

Check / Ispezione:

  • periodical visual check / ispezione visiva periodica :
  • check the cleaning of the equipment / controllo della pulizia dell’attrezzatura;
  • check the area between the ground and the equipment / controllo degli interspazi tra terreno ed attrezzatura;
  • check the consistency of the ground / controllo della consistenza del terreno;
  • check the foundations / controllo delle fondamenta ;
  • check the corners / controllo degli spigoli;
  • check the possible lack of some items / controllo dell’eventuale mancanza di parti ;
  • check the excessive wear of the movable items (bushes and pivots) / controllo dell’usura eccessiva delle parti mobili (snodi e boccole);
  • check the integrity of the entire equipment / controllo dell’integritĂ  dell’intera attrezzatura.
  •

For the game area, subject to be use intensively or to acts of vandalism, it can be necessary to daily check the equipment. / Per le aree gioco soggette ad uso intensivo o vandalismo, può essere necessaria un’ispezione giornaliera.

  • Functional check / Ispezione funzionale:
  • it must be performed every 1-3 months / deve essere eseguita con frequenza da 1 a 3 mesi.
  • Periodical annual check / Ispezione annuale periodica:
It could be necessary to disassembly some parts to be checked / Potrebbe rendersi necessario lo smontaggio di alcune parti per la verifica
